PacWrap® L-Sealer

Model 1420 LS-O

Already have a shrink tunnel or would you like to add an L-Sealer to an existing production line?

Shrink wrap up to 22 packages per minute!

Big Time Industrial Performance In One Neat Package!
The PacWrap® Model 1420 L-Sealer Offers Superior Sealing Time After Time!


PacWrap® L-Sealers feature 100% Solid State Electronics. Digital Electronic Temperature Compensation - Set it And Forget It.
Gives Perfect Seals Time After Time!
   How? By measuring the amount of residual heat in the element wire between each cycle, the element wire only receives the heat it needs to do the job.
•   So, the 10,000th seal is exactly the same as the first. Regardless of the operator. Plus, the element wires last much longer and don't need to be changed as often, saving you time and money.
•   Perfect for wrapping such items as: Books, manuals, paper reams, toys and games, food products, software, magazines, audio and video cassettes, cosmetics and more.

•  We use U.S.A.-made, ultra high-amp solid state relays; not flimsy printed circuit boards or old-fashioned mechanical contactors with springs to break down or contact points that require cleaning. Our heavy duty solid-state relays, electronic temperature compensation, and oversized industrial grade components combine to provide the highest level of electronic dependability available at any price. . .period.
•   Using the 1420 LS-O with your existing heat tunnel or heat guns gives you an economical way to increase shrink wrap packaging production.

PacWrap® 1420 LS-O L-Sealer


Overall Dimensions
50" Long x 19 1/2" Wide
Sealing Area
14" x 20"
Sealing Platform
Six Position Adjustable Depth for various package heights
L-Sealer Heat
Digital Heat and Temperature Compensation means perfect seals
time after time.
Shipping Weight
Approximately 200 Ibs.
3-1/2" Diameter, Heavy Duty Locking with Brakes
120 Volt - Standard (220 volt model available)
Powder Coat
One-Year Limited Warranty

Optional Features:   • Timed Electro-Magnetic Arm Hold-Down • Perforator Roller for micro-perfing Shrink Films • Stainless Steel Sealing Platform • Gravity Take Away Conveyor • Sturdy Stand With Shelf And Locking Casters • Extended Height Seal Arm for sealing up to 12" high packages • Roller Sealing Platen for heavy packages such as cases of bottled water or heavy gift baskets..

800 750-3388
© 2001 - 2019 ATW Manufacturing Company, Inc.

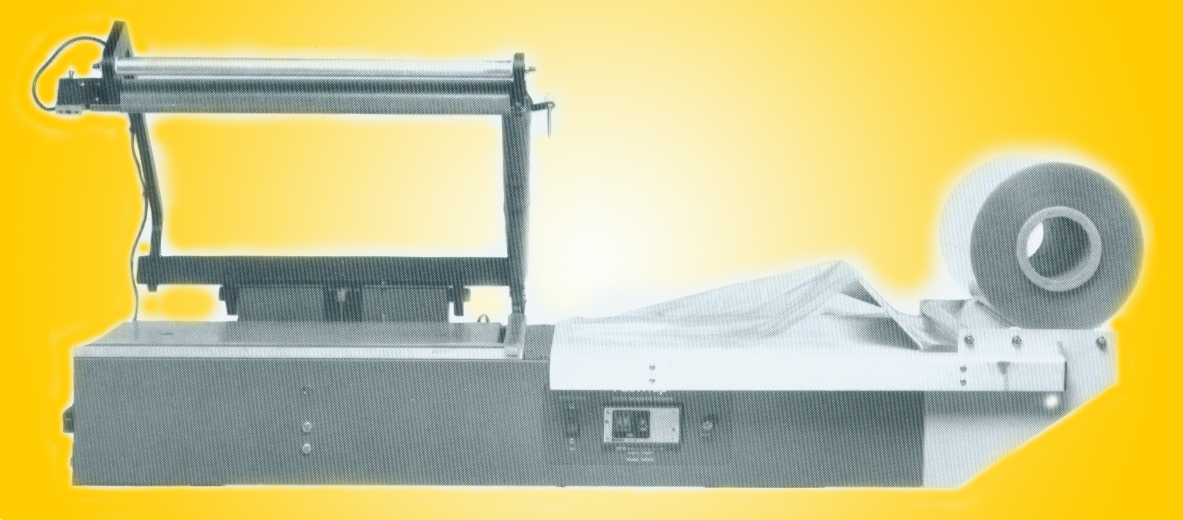

1420 LS-O Sealer

Easy To Use!
Fully Adjustable Film Rack and Separator • Allows various package sizes to be sealed without changing the film roll. Accommodates 6" to 23" wide film rolls (Optional extended width film rack for larger packages available)

Electronic Digital Temperature Compensation makes perfect seals regardless of the operator's skill level.

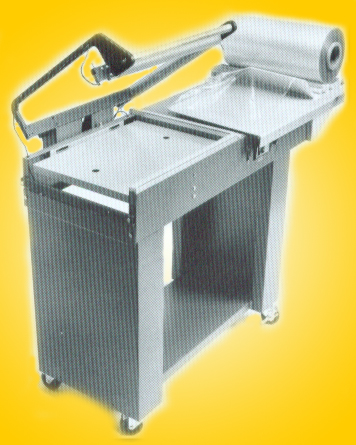

L-Sealer With Stand
Optional Stand with Casters and full width shelf: $535.00

Six Position Adjustable Sealing Platform

The Six Position Sealing Platform
quickly adjusts to accommodate packages from as thin a greeting card up to 7 1/2" high packages, optional extended height arm available for sealing up to 12" high packages
