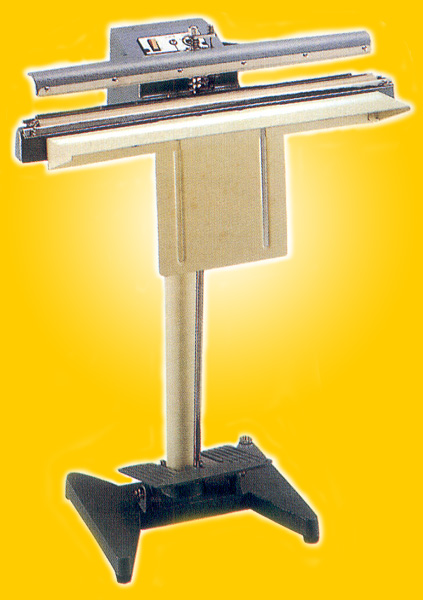

Foot Operated
Impulse Sealers - Industrial Production Quality
Foot
operated impulse sealers are designed
for
heavier duty use. Available in either12", 18" or 24" seal
lengths with
your choice of 2mm seal width (1/8") or 5mm seal width (1/4"). Foot sealers will seal most heat sealable bags and allow the
operator to
keep both hands free for quicker and more accurate sealing.
The
variable timer control allows the sealing of all kinds of
plastic films
up to 24" wide and 20 mil thick, and will also seal foam, and
even
bubble wrap!
|
TEW - AIE Foot Sealers
are the Perfect
Answer for your high volume
sealing needs! Optional Adjustable Tilting Heads & Height
Extensions
Available!
 AIEF-302 12"  AIEF-452 18"  AIEF-602 24"  Tilt Neck Option |
This way you can judge for yourself which seal is better for your needs before you buy!
We Want You Satisfied With Your Purchase!
See Chart Below to Select Model Number for 1/8" or 1/4" seals...Model numbers ending in "02" (1/8" wide seal) or "05" (1/4" wide seal)
| Model |
AIEF-302 12" - 2mm wide sealing wire |
AIEF-452 18" - 2mm wide sealing wire |
AIEF-602 24" - 2mm wide sealing wire |
AIEF-305 12" - 5mm wide sealing wire |
AIEF-455 18" - 5mm wide sealing wire |
AIEF-605 24" - 5mm wide sealing wire |
Popular Options:All can be added to any sealer to better fit your specific needs. | |
| Impulse
Power |
400Watts |
600Watts | 800Watts | 700Watts | 1000Watts | 1300Watts | ||
| Max.
Seal Length |
300mm 12" | 450mm 18" | 600mm 24" | 300mm 12" | 450mm 18" | 600mm 24" | 10mm wide impulse element foot sealers are also available. Call or email | |
| Seal
Width |
2mm
(1/8") |
2mm
(1/8") |
2mm (1/8") | 5mm
(1/4") |
5mm (1/4") | 5mm (1/4") |
#ATWFST: Tilt Neck Option Foot Sealer Stand Easier Sealing of loose products like powders and liquids to prevent spilling while sealing. |
$175.00 |
| Max.
Bag Thickness |
16
mil |
16mil |
16
mil |
16
mil |
16 mil | 16 mil | #ATWFSX: Height Extension Raises the sealing heads 10 inches making standing operation more comfortable and productive. | $180.00 |
| Heat
Time |
0.2~1.7(sec.) |
0.2~1.7(sec.) | 0.2~1.7(sec.) | 0.2~2.2(sec.) | 0.2~2.2(sec.) | 0.2~2.2(sec.) | ||
| Weight |
52 lbs. (23kg) |
57
lbs. (28kg) |
65
lbs. (34kg) |
54
lbs. (24kg) |
62 lbs (29kg) | 75 lbs. (35kg) | ||
| Web
Price
Each |
$440.00 | $515.00 |
$605.00 |
$450.00 | $550.00 |
$650.00 |
||
HUGE inventory of poly bags and tubing, cellophane bags and shrink wrap, shrink bands and shrink tubing. Repair kits and heat wires are Made in USA!
Factory Authorized Service. We stock parts for AIE, TEW, KF, Midwest Pacific and nearly any other brand of sealer! Service Kits, Call us for 18 yard long rolls of Non-Stick PTFE Tapes and Cloth and Fabric , as well as a HUGE inventory of poly bags, cello bags and vacuum pouches! Call Us!
